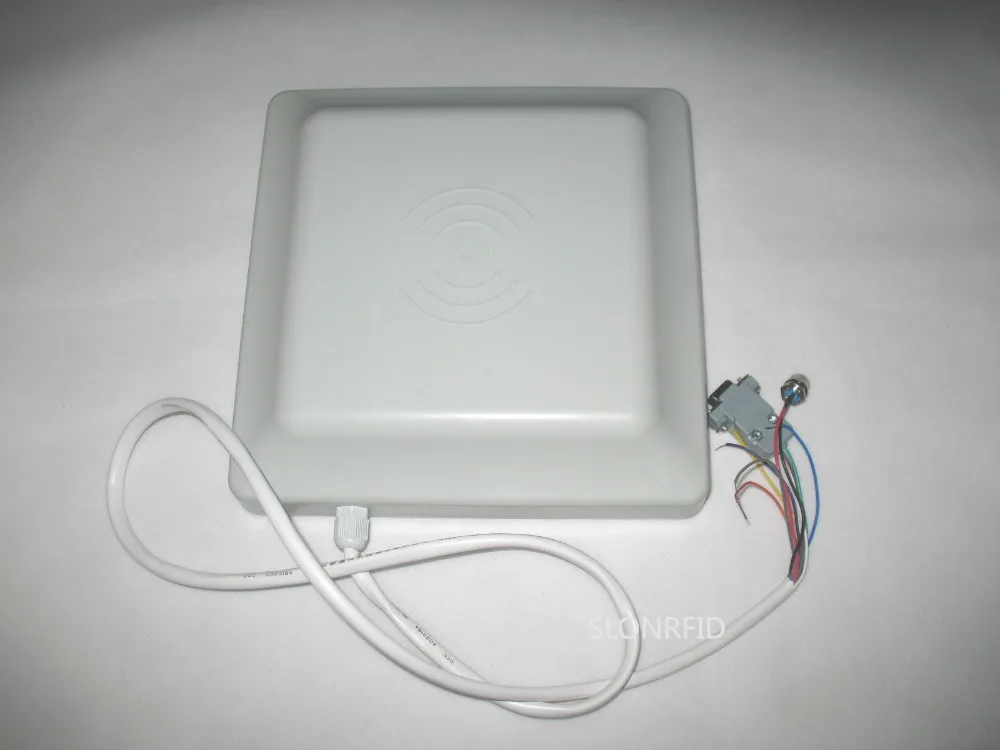

SR681 UHF RFID Reader 6m Long Range Outdoor IP67 8dbi Antenna RS232/RS485/Wiegand Output UHF Integrated Reader

Model Number RS232/RS485/SR681

Brand Name Yanzeo

Yanzeo SR681General Description: AD-0702 is a High Performance UHF integratedreader for long range operation. Compact Reader with integrated 8dBi circular polarized UHF Far Field antenna,.Based on proprietary efficient digital signal processing algorithm,the reader is capable of up to 6m Read Range and 3m Write Range. The reader operates in frequency range of 902MHz～928MHz design to read ISO18000‐6C and ISO18000‐6B protocol IDTag. The reader can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system. Features: Self-intellectual property Max reader range 6m Durable and cost effectives All frequency band in the world available Compatible with EPC G2(ISO 18000-6C) or ISO18000-6B Water and dust proof, anti-interference, can work under thunder and light，IP55 Splash Proof Easy to install with enclosure up-and-down adjustable bracket Area of Application: Automotive and Transportation Supply Chain and Super Mart Parking lot Management School, Library Contact-less Payment Logistic Management Boarder and Access Control Asset Tracking Time&AttendanceManagement Anti‐counterfeit Farm and Animal Tracking Club and Hospital Specification: Functions Operating Frequency International（920～925MHz） USA（902～928MHz） Others（Customized Tag） Protocol ISO18000‐6C(EPCGEN2) ISO18000‐6B Frequency Hopping Mode Fixed Frequency Band and FHSS Software Programmable Antenna 8dBicircularpolarizeantenna （Integrated） Output Power 0dBm～30dBm（Adjustable） Read/Write Range Max Read Range：6m, Max Write Range：3m Distance depends on Reader&Antenna output Power Operating Mode Master‐Slave Mode（Online Mode） Time Scheduled Modes Trigger Mode Connecting Ports Power 12V Communication Port RS‐232 Wiegand Interface：Wiegand26&Wiegand34Supported RS‐485 10/100M Ethernet，GPRS.WIFI（for Customized Model only） Trigger 1xTriggerLevelInput General Purpose 2xGPIO Operating Environment Operation -20℃~+60℃ Storage -45℃~+85℃ Physical Parameter Dimension 227mm×227mm×60mm Weight 1.8Kg Accessories Power Supply AC110～220V/DC+12V Cables Power Cable RS232SerialCable Brackets Pole Mount Adapter Software Pack(Optional) API Software Development Kits complete with VB,C#Sample Program
